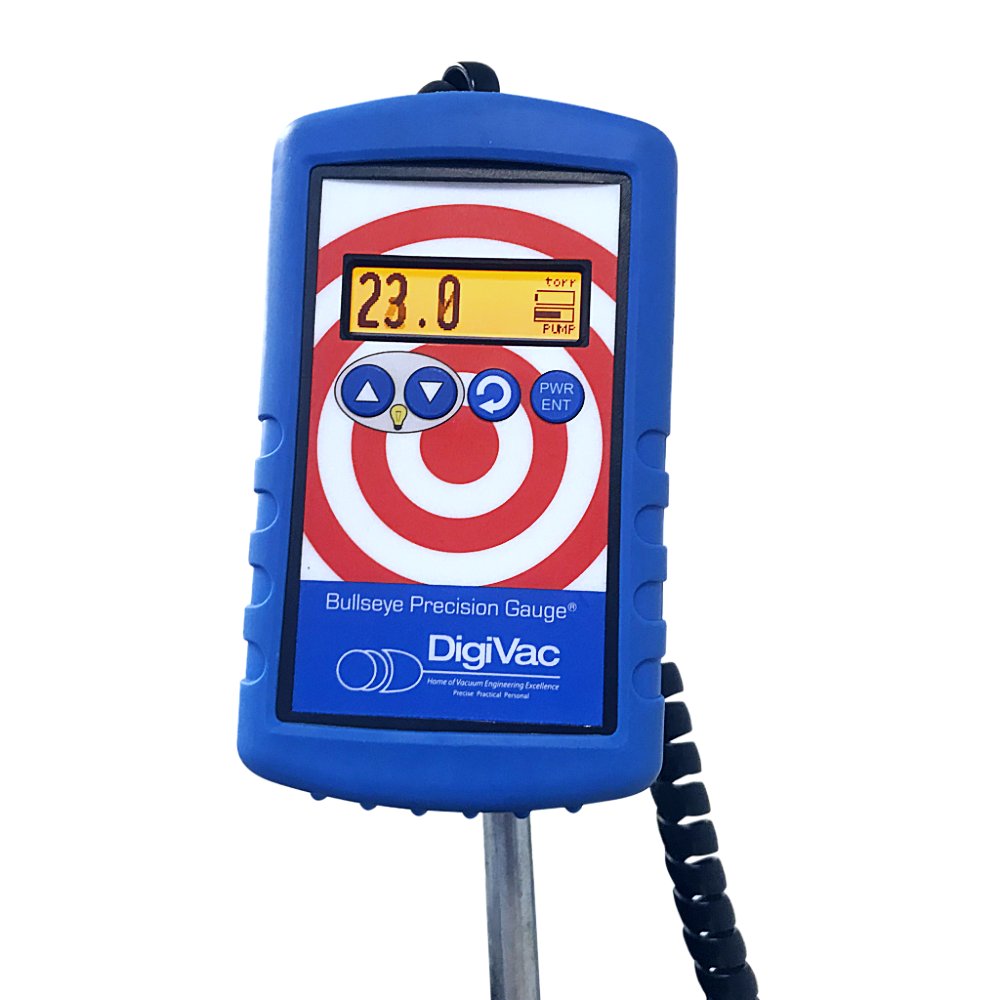

Bullseye Precision Vacuum Gauge - Sensor Upgrade Available
Accurate Monitoring • Complete Upgrade Kit • KF25 Ready
Description
The Bullseye Precision Vacuum Gauge is a high-accuracy instrument designed to measure and monitor vacuum pressure levels in various applications, including scientific research, industrial processes, and laboratory settings. This version is provided without a sensor, allowing users to pair it with their preferred compatible sensor for customized vacuum measurement solutions.
Bullseye Key Features
-
High Precision Measurement: Capable of detecting minute fluctuations in vacuum pressure, ensuring accurate readings for sensitive applications.
-
Versatile Display Options: Features a clear, easy-to-read digital display with multiple viewing modes, including numeric, bar graph, and pump-down displays
-
Wide Measurement Range: Designed to measure pressures in the high vacuum or ultra-high vacuum range, from atmospheric pressure down to extremely low pressures in the torr, pascal, or millibar range.
-

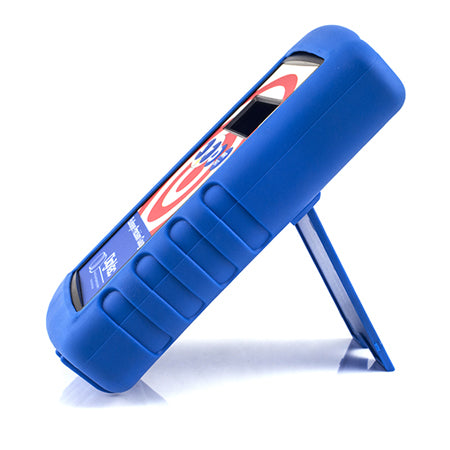

Rugged and Portable Design: Built for field use with a durable casing and a strong magnet for hands-free operation.
-
Extended Battery Life: Operates up to 70 hours on AA batteries, ensuring reliability during extended use.
-
Field Calibratable: Allows for on-site calibration to maintain measurement accuracy over time.
Bullseye Specifications
-
Display: Digital with numeric and graphical modes
-
Measurement Units: Supports multiple units, including Torr, mbar, kPa, millitorr, microns, inches of Hg, mm Hg, inches of water, PSI, and Pa
-
Power Supply: AA batteries (up to 70 hours of operation)
-
Dimensions: Approximately 11 x 10 x 4 inches
-
Weight: Approximately 2 lbs
-
Sensor Compatibility: Compatible with various thermocouple vacuum sensors
KF25 Sensor Key Features
-
Wide Measurement Range: Measures from 1 x 10⁻³ to 760 Torr, suitable for various vacuum applications.
-
KF25 Flange Compatibility: Standard KF25 (NW25) flange ensures easy integration into existing systems.
-
Durable Construction: Made from 304L stainless steel with a Platinel filament for enhanced durability.
-
Integrated Baffle: Protects the sensor from condensable gases, extending its operational life.
-
Reliable Performance: Factory-calibrated for consistent and accurate readings over time.
KF25 Sensor Specifications
-
Flange Options: NW16/KF16 or NW25/KF25 flange
-
Material: 304L stainless steel with an added baffle to extend tube life
-
Total Range: 1 millitorr to 760 Torr
-
Range with Accuracy: 0.001 Torr to 6 Torr
-
Maximum Bake-Out Temperature: 150 °C
-
Construction: Welded stainless steel with a baffle for extended life in demanding applications like distillations, vacuum processing, and laboratory research using schlenk lines
-
Performance: Continuous and repeatable pressure indication
-
Sensor Components: Noble metal thermocouple and heater to minimize contaminant effects on performance
-
Certifications: CE Certified and RoHS compliant
-
Part Numbers:
-
536 KF25 – Part Number: L6141309
-
536 KF16 – Part Number: L6141308
-
-
Compatible Gauges:
-
Bullseye Precision Gauges
-
StrataVac Multi-Gauge Controller
-
DigiVac Vacuum Gauges and Controllers
-
Applications
-
Scientific research in fields like physics, materials science, and nanotechnology
-
Industrial processes, including semiconductor manufacturing and food packaging
-
Laboratory settings for material deposition, testing, and electron microscopy
Operational Guidelines
-
Sensor Integration: Connect a compatible thermocouple vacuum sensor to the gauge for accurate pressure measurements.
-
Powering the Device: Insert AA batteries to operate the gauge; monitor battery levels regularly.
-
Display Modes: Utilize the various display options to monitor vacuum levels and system performance effectively.
-
Calibration: Perform field calibration as needed to ensure ongoing measurement accuracy.
Bullseye Precision Gauge
A rugged portable vacuum gauge for processing applications that pairs unparalleled vacuum measurement comes with the Agilent 536 sensor that has an integrated baffle which provides protection and helps reduce risk of sensor failure. Accuracy .001 Torr to 6 Torr.
DigiVAC
Bullseye Precision Gauge Portable Vacuum Gauge Features:
A rugged portable vacuum gauge for processing applications that pairs unparalleled vacuum measurement with the Agilent 536 sensor that has an integrated baffle which provides protection and helps reduce risk of sensor failure.
- See vacuum readings in either numbers or easy-to-read graphs
- Has 12 measurement units for implementation in almost any vacuum application
- Torr, mbar, bar, kPa, inches of Hg, mm Hg, millitorr, microns, inches of water, PSI, Pa

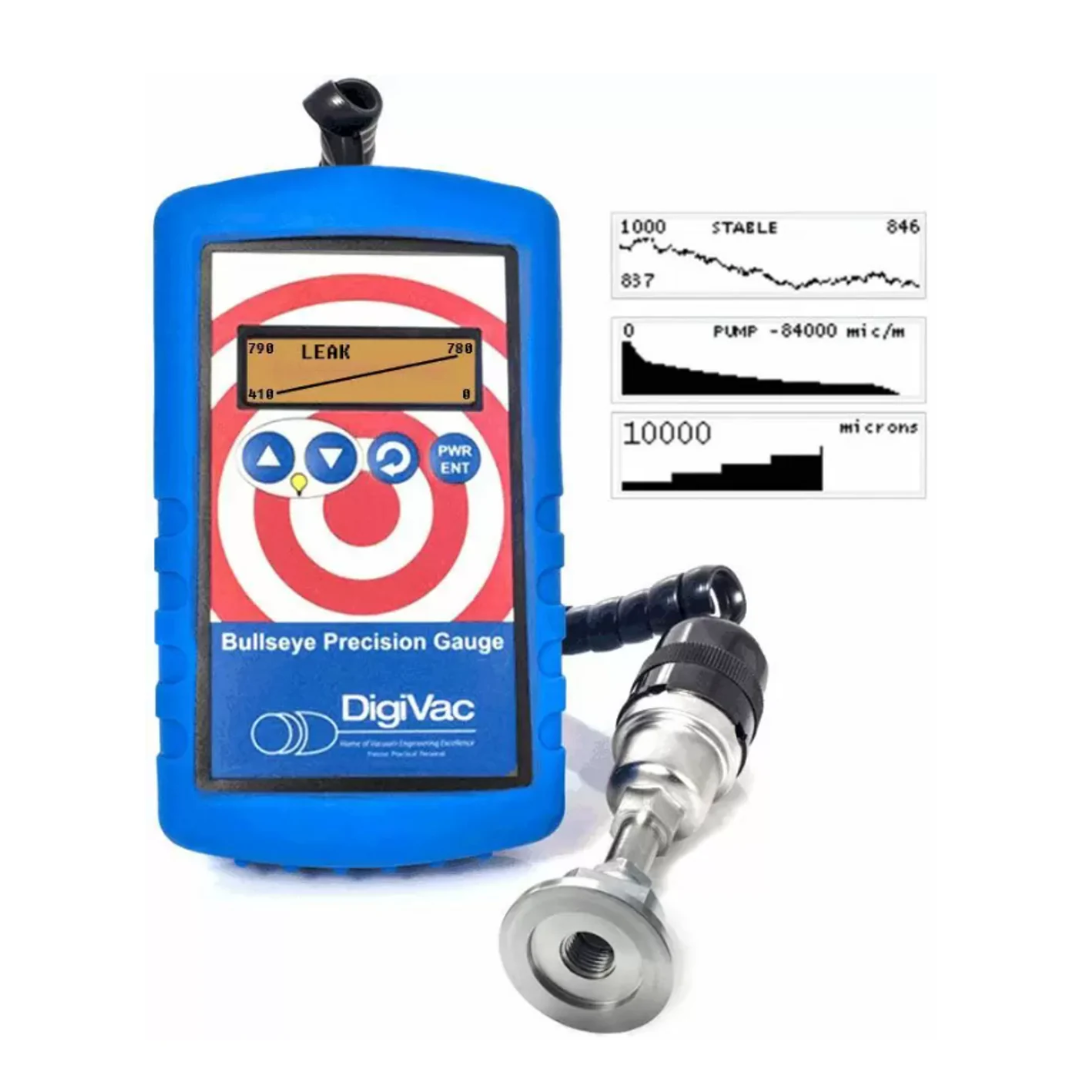

Numeric & Graphical Displays
See vacuum readings in either numbers or easy-to-read graphs
Has 12 measurement units for implementation in almost any vacuum application
Torr, mbar, bar, kPa, inches of Hg, mm Hg, millitorr, microns, inches of water, PSI, Pa
Calibrated & Precise
Delivered pre-calibrated with Agilent/ Varian 536 thermocouple sensor under actual vacuum against the NIST standard.
The 536 all stainless steel sensor with baffle has extended sensor life in the presence of condensable gases and improved performance at higher pressures
Vacuum Interface: KF25 or NPT or KF16 | optional purchase with the Stainless NW25 Wing Clamp and Centering Ring
Wetted materials: 304L Stainless steel, glass, Type P thermocouple
Extended Battery Lifespan
Portable | Solid state electronics built into a handheld gauge that operates using AA batteries that lasts up to 70 hours
In-lab use | Power gauge using the integrated Micro-USB port for long-term use without the need to change batteries
Ideal Vacuum Gauge for Processing Applications
Laboratory, freeze drying, low pressure distillations, foreline monitoring, Schlenk lines performance, and transformer dry-out
Or any application with higher levels of condensables where sensor failure is more likely
Watch this video of Tim Collins (DigiVac’s CEO) using the Bullseye Precision Gauge to instrument our vacuum pump down solution to verify function and safety. And this video overviews Bullseye’s use in understanding vacuum system function and performance.
Technical Specifications
| Units | Torr, mbar, kPa, millitorr, microns, bar, inches of Hg, mm Hg, inches of water, PSI, Pa |
| Measurement Range | 1E-4 – 1000 Torr |
| Range with Accuracy | 0.001 – 5 Torr |
| Sensor Type | Agilent 536-KF25 |
| Dimensions | 11 x 10 x 4 in |
| Certifications | CE, RoHS |
DIGIVAC
Agilent 536 Vacuum Sensor KF25 or KF16 Flange
The Agilent 536 KF16 and 25 Vacuum Sensors are Thermocouple Gauge Tubes. The sensors are a welded 304 stainless steel version of the 531 with KF flange and an additional baffle that greatly extends the sensor life.
Agilent 536 Vacuum Sensor KF25
NW16/KF16 OR NW25/KF25 Flange, 304L Stainless Steel with the Addition of a Baffle
Total Range: 1 millitorr to 760 Torr
Range with Accuracy: .001 Torr to 6 Torr
Maximum bake-out temperature: 150 °C
The Agilent 536 Vacuum Sensor by Agilent is welded 304 stainless steel with an additional baffle that greatly extends the tube life when exposed to condensable gases in demanding applications like distillations, vacuum processing, and laboratory research using schlenk lines
Provides a continuous and repeatable indication of pressures
The thermocouple and heater are noble metal to minimize any possible affect of contaminants on sensor performance
Certifications: CE Certified and RoHS compliant
Maximum bake-out temperature: 150 °C
536 KF25 Part Number: L6141309
536 KF16 Part Number: L6141308
Compatible Gauges:
Bullseye Precision Gauges
StrataVac Multi-Gauge Controller
DigiVac Vacuum Gauges and Vacuum Controllers
Replacement tube for DigiVac Bullseye Precision Gauge for Processing
Applications:
Rough Vacuum
Process Vacuum
Research and Development
Industrial Vacuum Applications

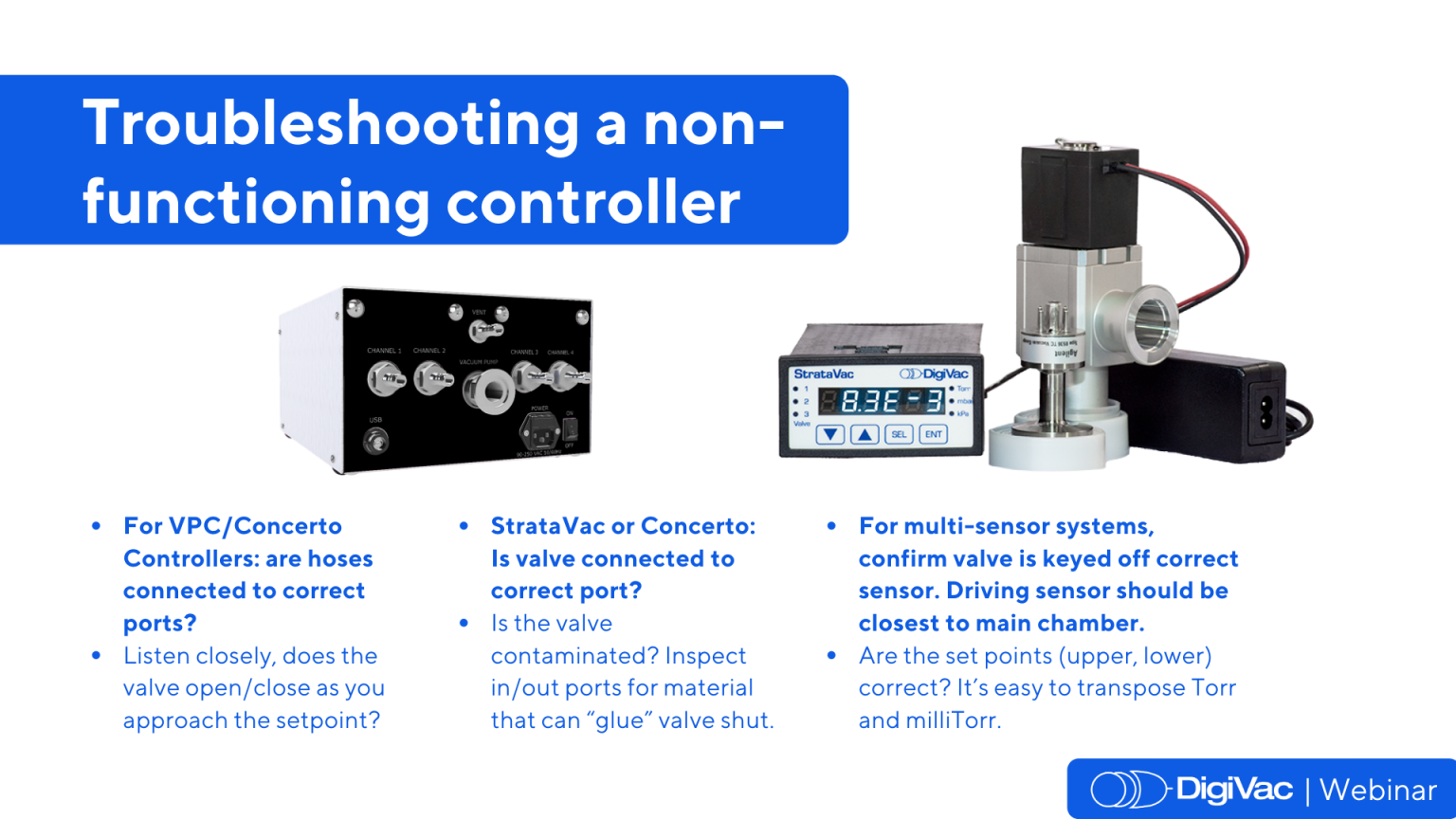

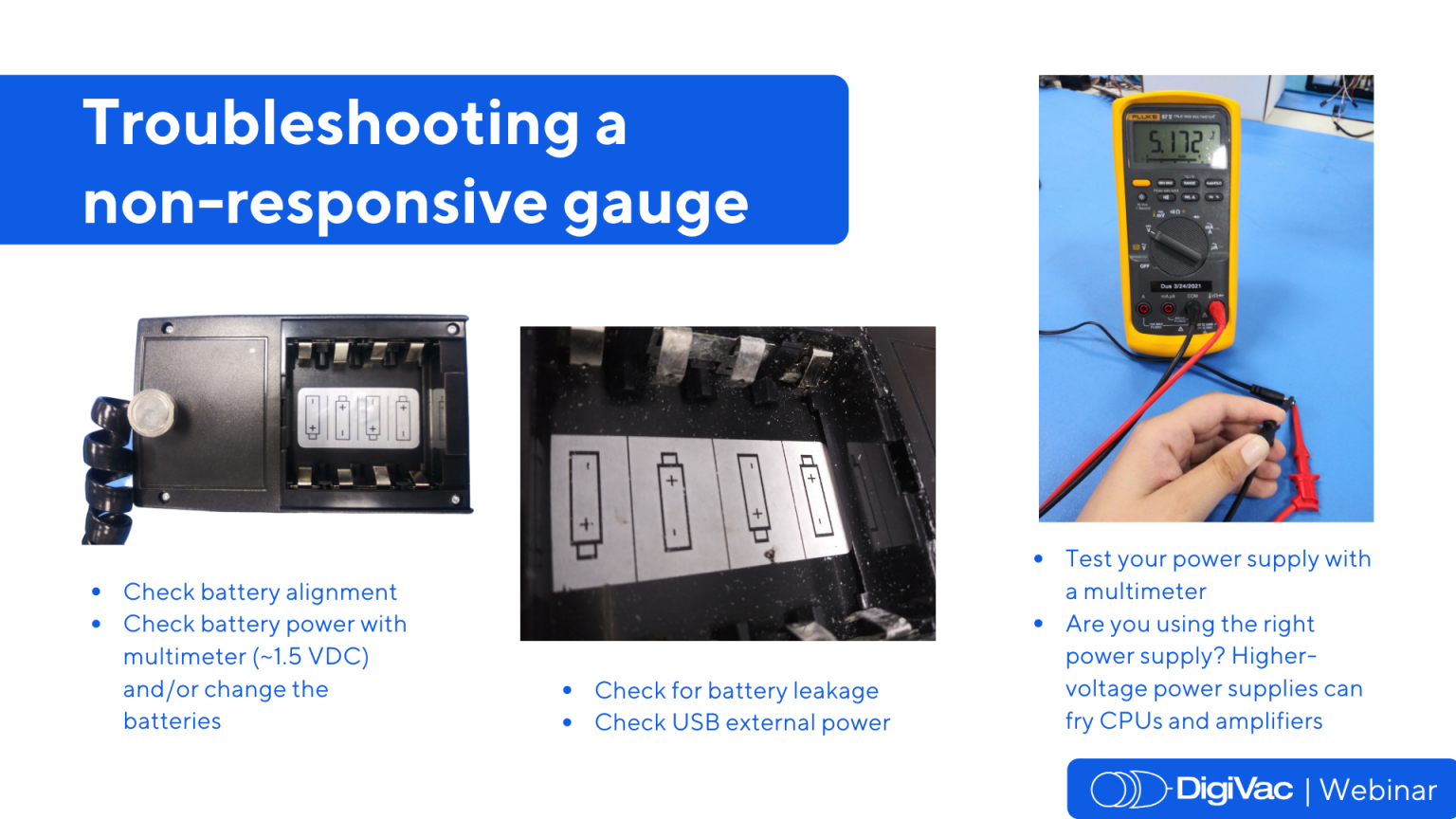

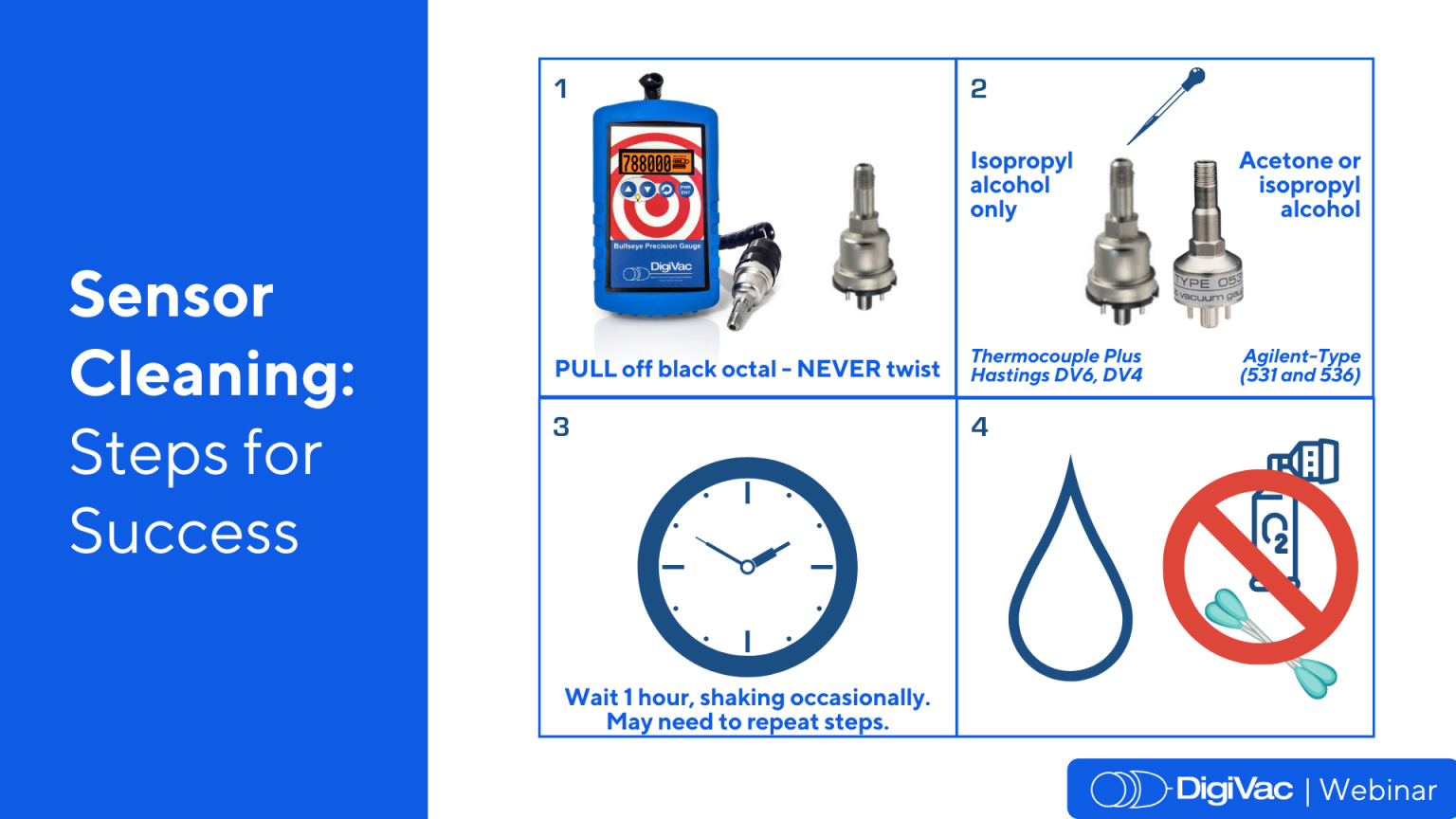

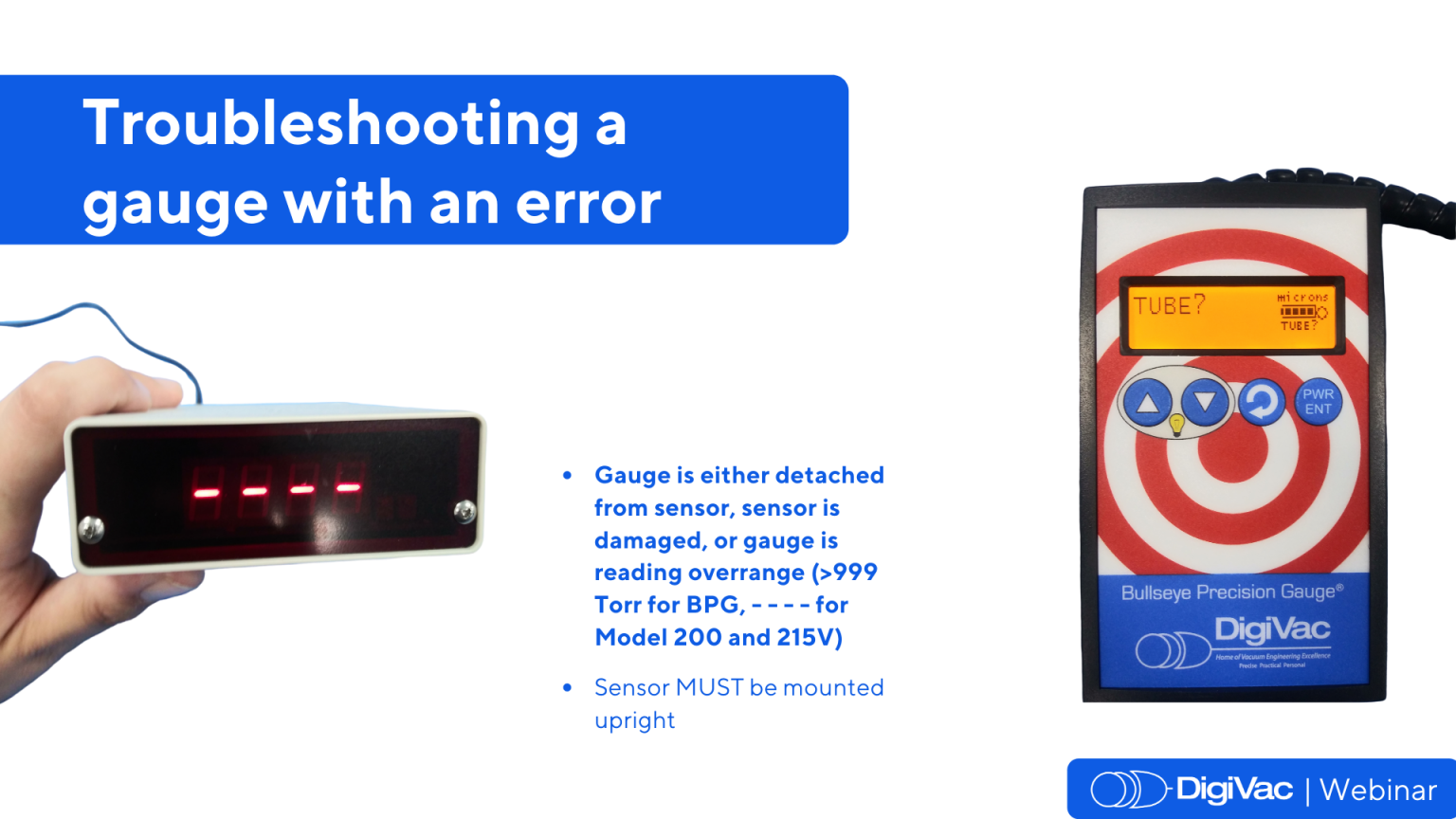

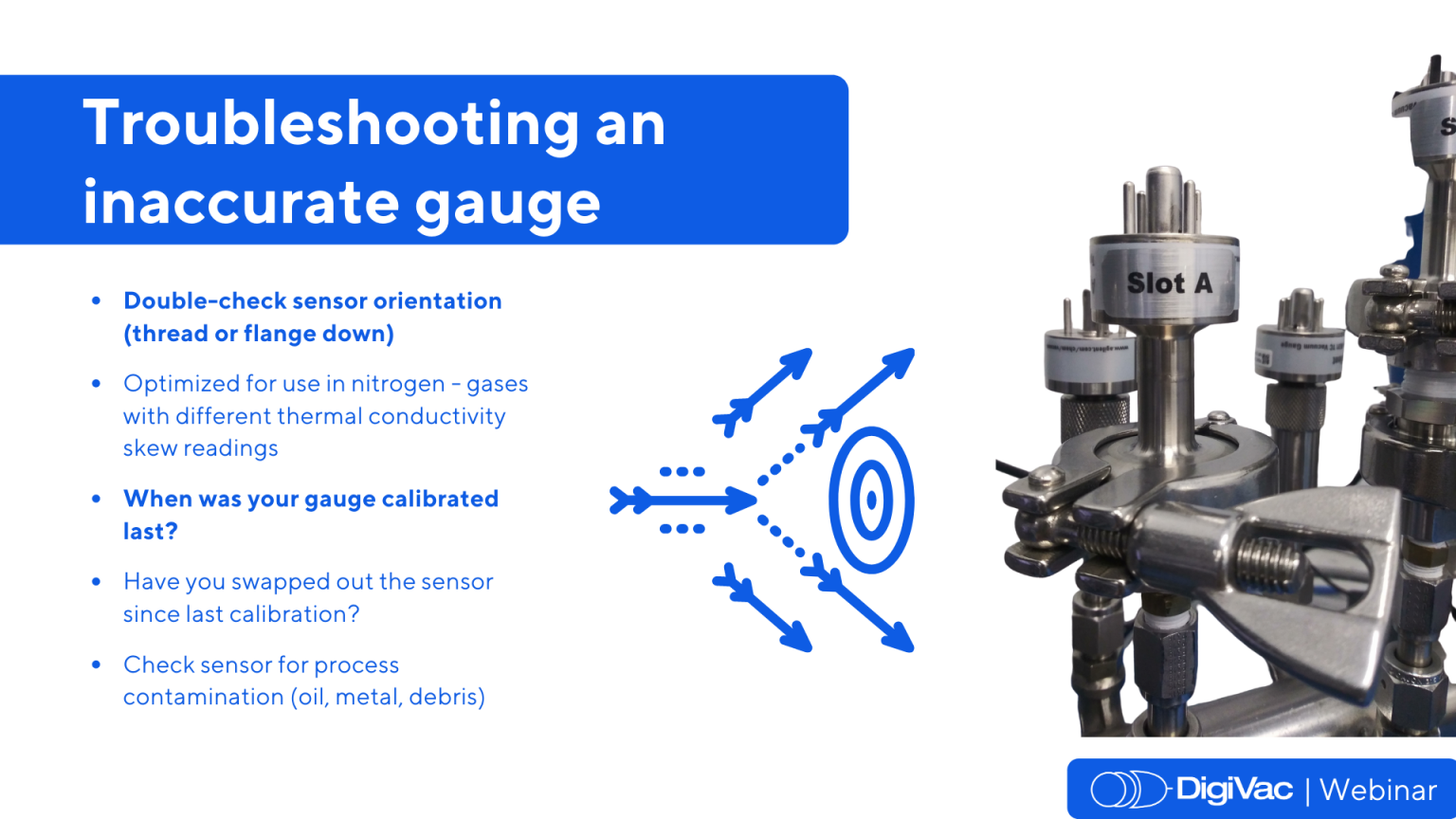

Troubleshooting
DigiVac Webinar
Troubleshooting Vacuum Instruments + Q&A
Bullseye's Use in Understanding Vacuum System
This video is from DigiVac's "Automated Pump Down Control Case Study", and features the Bullseye Precision Gauge and Bullseye DASH.
Instrumenting our Pump Down Solution to Verify Function & Safety
This video is from DigiVac's "Automated Pump Control Case Study". In this clip, Tim Collins overviews the instrumentation that we added to our pump down solution in order to verify that it was functional and safe.
